MacR6-Z0-P

PLUM ELECTRONICS
telemetric gas
pressure logger

gas pressure data logger with built-in IoT telemetry module MacR6-Z0-P

The main application of MacR6-Z0-P is to transmit pressure trend information and alarm states to the SCADA system or eWebTEL. The logger is equipped with an integrated modem operating in NB-IoT, LTE Cat.M1, and 2G technologies.

The integrated battery allows for long-term operation of the device. MacR6-Z0-P is designed to operate in zone 0 explosion hazard areas.

about
MacR6-Z0-P gas pressure logger

  • simultaneous registration of two pressures
  • effective data transmission and remote delivery through telecommunication networks
  • battery lifetime up to 10 years
  • automatic disturbance notifications
  • intuitive and fast configuration based on the ConfIT! data logger application

why is it worth
choosing MacR6-Z0-P gas pressure logger?

monitor operation of the PRMS station remotely, in real-time

record all measurement events; have constant access to the station's work history

synchronize measurement data with other systems, e.g. SCADA

introduce tariff price management; accurately and timely bill gas consumption

reduce meter reading service costs

transmit data safely using NB-IoT technology

record data from any gas meter using dedicated adapters

functionalities of MacR6-Z0-P
gas pressure logger

support for low-power data transmission technologies
LPWAN in cellular networks: LTE Cat.M1
and NB-IoT (LTE Cat.NB2)

support for Mobile Virtual Network Operators (MVNOs)

standard D-size lithium battery,
up to 10-year operating period

LCD display presenting connection status,
network level, battery status, and pressure reading

IEC 62056 optical interface for configuration

effective data transmission in challenging conditions

dedicated mobile application
for device configuration and data reading

implemented GAZ-MODEM 2 and 3 transmission protocol

event-based data transmission
for pressure limit exceedances

application of the MacR6-Z0-P
gas pressure logger

pressure
monitoring

Monitoring pressure at the end of the network using MacR6-Z0-P LPWAN.

application
diagram

Application diagram of MacR6-Z0-P LPWAN.

local
operation

Local reading and configuration of MacR6-Z0-P LPWAN.

technical
data

dimensions / weight:
124 x 90 x 40 mm/ 1 kg
casing material:
polycarbonate
relative humudity:
max. 95%, at temp. 55°C
ambient temperature range:
min. -30°C, max. 55°C
display:
segment LCD display
power supply:
standard replaceable lithium battery, size D 3.6V/17Ah; operating time: LTE-M/NB-IoT - up to 10 years, 2G - up to 5 years

accessories

eWebTEL

Data acquisition system
see more

ConfIT!

Software for desktop configuration
see more

ConfIT! data loggers

Data loggers configuration application
see more

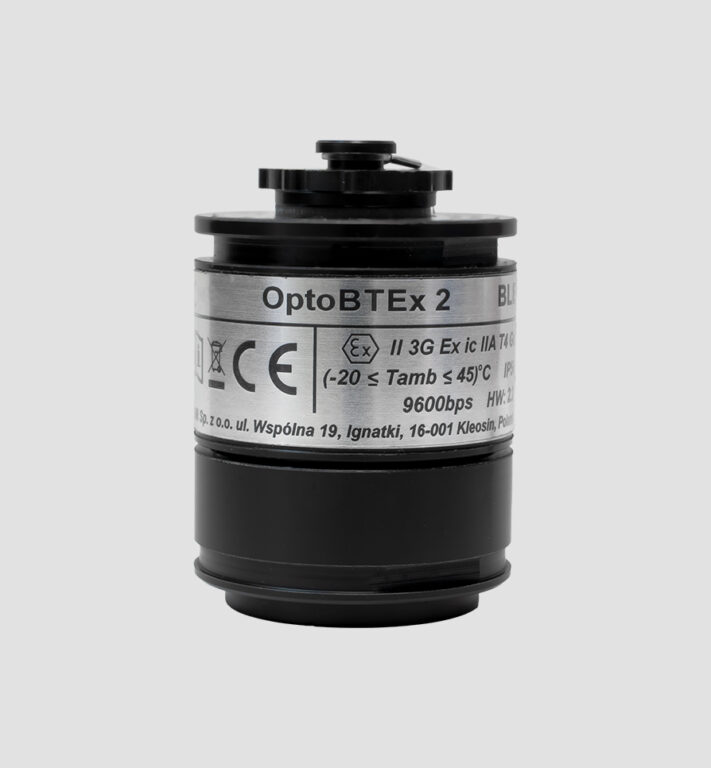

OptoBTEx

Optical interface
see more

antenna

Antenna 4G/3G/2G
see more

mounting bracket

Mounting bracket
see more

download

Do you need detailed technical documentation, DWG files, MODBUS maps, or other product documents?
Contact us directly at export@plum.pl.

user manual MacR6-Z0-P
installation manual MacR6-Z0-P
declaration of conformity MacR6-Z0-P
datasheet MacR6-Z0-P
